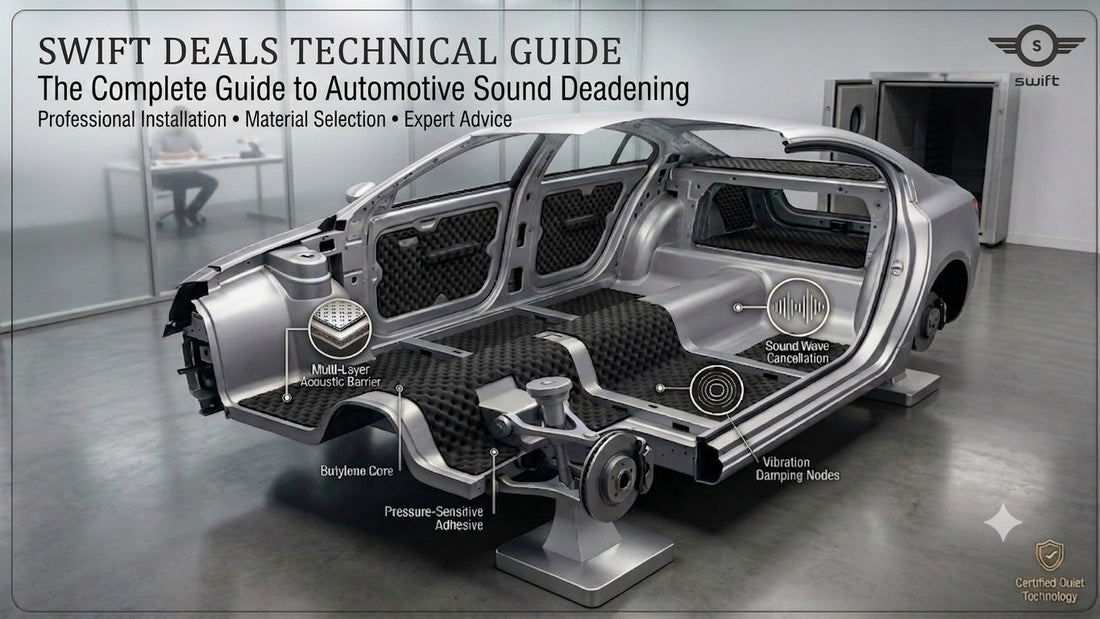

How to Choose the Right Automotive Sound Deadening Material for Your Vehicle

Choosing the right automotive sound deadening material can make a significant difference to road noise, heat and overall cabin comfort. However, the thickest material is not automatically the best choice for every part of a vehicle.

The most effective system uses the right material in the right location. Areas with limited clearance may require a thinner product, while floors, wheel arches and large cargo areas can often accommodate thicker materials for greater acoustic performance.

This guide explains the differences between 6 mm, 10 mm and 15 mm automotive sound deadening, where each product works best, when to add thermal insulation and how to plan your installation.

How Automotive Sound Deadening Works

Vehicle noise enters the cabin in several ways. Road and tyre noise can travel through the floor and wheel arches, engine and drivetrain noise can transfer through the firewall and transmission tunnel, and large metal panels such as doors and roofs can allow noise and heat into the cabin.

Closed-cell foam sound deadening helps reduce these effects mainly by absorbing airborne noise, decoupling panels and trim so surfaces do not rattle or buzz against each other, and — particularly with foil-faced products — helping to reduce heat transfer.

It is worth understanding what closed-cell foam does and does not do, because it helps you choose the right products and set the right expectations:

• What foam does well: absorbs and reduces airborne road, tyre and engine noise; softens cabin echo and reverberation; stops trim rattles and panel-to-panel buzz by decoupling surfaces; and, for foil-faced products, reflects radiant heat.
• What foam does not do: foam does not add significant mass, so it is not the right tool for damping the low-frequency "drumming" or ringing of a large thin panel. That specific job belongs to a dense, mass-type damping material. Foam and a mass damper solve different problems and work best as complementary layers.

The best results usually come from treating the main noise-transfer areas first rather than simply adding the thickest possible material everywhere.

Figure 1. Recommended installation systems for maximum sound and thermal insulation performance.

Where Should You Install Sound Deadening?

Installing sound deadening in the right locations will deliver the greatest improvement in comfort and noise reduction. While every vehicle is different, certain areas consistently produce the highest levels of road, tyre and engine noise. Treating these key panels first provides the best return for your investment.

Figure 2. Key vehicle areas where sound deadening and thermal insulation can be installed.

Which Areas Should You Treat First?

You do not always need to cover every panel in the vehicle to achieve a noticeable improvement. The best results come from treating the areas that generate or transmit the most noise first, then adding further layers where greater acoustic and thermal performance is required.

1. Floor and Transmission Tunnel — Highest Priority

The vehicle floor is one of the largest metal surfaces and a major path for road, tyre and drivetrain noise. The transmission tunnel can also transfer heat into the cabin. For most vehicles, treating these areas provides one of the biggest improvements in overall cabin comfort.

Recommended system: 10 mm sound deadener for the best all-round balance of noise reduction, thermal insulation and practical fit. Where maximum acoustic thickness is required and sufficient clearance is available, 15 mm dimple sound deadener can be used.

2. Doors — High Priority

Door skins are large, thin metal panels, and the door cavity is a common source of road noise and trim rattles. Treating the doors helps absorb road noise entering through the cavity and reduces buzzing and rattling between the door skin and interior trim, which can also make the vehicle's audio sound cleaner by cutting unwanted rattles around the speakers.

Recommended system: 6 mm sound deadener for general door treatment, or 15 mm dimple sound deadener where there is sufficient clearance behind the door trim.

Note: if your main goal is to stop a large door skin from drumming or resonating at low frequencies, that is best addressed with a dense mass-type damping material applied directly to the panel, with foam added over it for absorption. Foam alone reduces airborne noise and rattles rather than panel resonance.

3. Rear Wheel Arches — High Priority

Rear wheel arches are a major source of tyre and road noise, particularly in hatchbacks, wagons, 4WDs and vans. Applying sound deadening around the internal wheel arch area can significantly reduce noise entering the cabin.

Recommended system: 15 mm dimple sound deadener for maximum absorption of tyre and road noise. Where space or trim clearance is limited, 10 mm sound deadener is a more practical alternative.

4. Firewall — High Priority

The firewall separates the engine bay from the passenger compartment and is a major pathway for engine noise and heat. Treating the cabin side of the firewall can improve both acoustic and thermal comfort.

Recommended system: 10 mm sound deadener for combined noise reduction and thermal insulation. Where additional heat protection is required, 5 mm double-sided aluminium foil insulation can be added in suitable areas where sufficient space is available.

5. Roof — Medium Priority

The roof is a large, relatively thin metal panel that can transmit rain noise, wind noise and heat into the cabin. Treating the roof can make a noticeable difference in vans, 4WDs, caravans and other vehicles with large roof areas.

Recommended system: 6 mm sound deadener for noise absorption and rattle control, with 5 mm double-sided aluminium foil insulation added where additional thermal protection is required and sufficient space is available.

6. Boot and Cargo Area — Medium Priority

The boot floor, spare-wheel well and rear quarter panels can allow tyre, exhaust and road noise to enter the cabin. These areas are particularly important in hatchbacks, wagons, 4WDs and vans because the cargo area is directly connected to the passenger compartment.

Recommended system: 10 mm sound deadener for general boot and cargo-area treatment. Where maximum acoustic thickness is required and sufficient space is available, 15 mm dimple sound deadener can be used.

7. Rear Doors and Tailgate — Lower Priority

Rear doors and tailgates can transmit road noise and develop rattles, particularly in vans, wagons and 4WDs. These areas are generally treated after the floor, doors and wheel arches unless they are an obvious source of noise or rattling.

Recommended system: 6 mm sound deadener for general treatment.

Which Sound Deadening Thickness Should You Choose?

Choosing the right thickness depends on where the material will be installed, how much clearance is available and the level of noise and thermal insulation required. Thicker material is not automatically the best choice for every area of a vehicle. The most effective installation often uses different thicknesses in different locations.

6 mm Sound Deadener — Best for Tight Spaces

The 6 mm sound deadener is the most practical choice for areas where space is limited or trim panels must be refitted over the material. Its lower profile makes it suitable for doors, roofs, rear doors, tailgates and other areas with restricted clearance. The foil facing also provides a degree of heat reflection.

Best suited for: Doors, roofs, rear doors, tailgates and behind interior trim panels.

10 mm Sound Deadener — Best All-Round Choice

The 10 mm sound deadener provides a strong balance between acoustic absorption, thermal insulation and practical installation thickness. It is suitable for many of the largest noise-transfer areas in a vehicle and is the best general-purpose option for customers who want one versatile product. The foil facing adds useful heat reflection for areas exposed to warmth.

Best suited for: Floors, transmission tunnels, firewalls, boot floors, cargo areas and general vehicle insulation.

15 mm Dimple Sound Deadener — Maximum Absorption

The 15 mm dimple sound deadener is designed for areas where greater acoustic absorption is required and sufficient installation space is available. Its thicker profile and dimpled surface increase the material's ability to absorb and scatter airborne noise, which is particularly useful near major sources of tyre and road noise.

Best suited for: Rear wheel arches, large cargo areas, vans, 4WDs and other locations where maximum foam thickness and absorption are the priority.

5 mm Double-Sided Aluminium Foil Insulation — Thermal Protection

The 5 mm double-sided aluminium foil insulation is designed primarily for thermal insulation rather than noise control. Its reflective foil surfaces help reduce radiant heat transfer, making it particularly useful in areas exposed to heat from the engine, exhaust system, transmission tunnel or sun.

It can be used as part of a layered system with sound deadening products where both noise reduction and thermal protection are required.

Best suited for: Roofs, floors, transmission tunnels, firewalls, vans, caravans and other areas where additional thermal insulation is required.

Important: Aluminium foil insulation should be installed where there is sufficient clearance and should not interfere with wiring, moving components, airbags, drainage paths or the correct refitting of interior trim.

Should You Layer Sound Deadening and Thermal Insulation?

Sound deadening and thermal insulation perform different jobs, so combining them can provide better overall results in areas where both noise and heat are a problem. The correct layering system depends on the location, available clearance and the main source of noise or heat.

Option 1: Maximum Acoustic Absorption

For areas where road and tyre noise are the main concern:

Vehicle metal → 15 mm dimple sound deadener → Interior trim or carpet

This system is best suited to rear wheel arches, large cargo areas, vans and 4WDs where sufficient clearance is available.

Option 2: Balanced Noise and Thermal Protection

For areas where both noise reduction and heat insulation are important:

Vehicle metal → 10 mm sound deadener → 5 mm double-sided aluminium foil insulation → Interior trim or carpet

This system is suitable for floors, transmission tunnels, cargo areas and other locations where both acoustic and thermal performance are required.

Option 3: Tight Spaces

For areas where trim clearance is limited:

Vehicle metal → 6 mm sound deadener → Interior trim

This system is best suited to doors, roofs, rear doors, tailgates and behind interior trim panels.

Important: Not every vehicle requires multiple layers in every area. Before installation, always check available clearance and ensure the material does not interfere with seat mounts, wiring, drainage holes, airbags, moving components or the correct refitting of interior trim.

How Much Sound Deadener Do You Need?

The amount of sound deadening material required depends on the size of the vehicle and the areas you plan to treat. You do not always need to cover the entire vehicle at once. Many customers achieve a noticeable improvement by starting with the main noise-transfer areas and adding further treatment later if required.

Approximate Coverage Guide

Tip: Measure the approximate length and width of each area before ordering, then allow an additional 10–15% for cutting, shaping and fitting around curves or obstacles.

Because Swift Deals sound deadening products are supplied in 1 metre wide rolls and cut to length, calculating the quantity is straightforward. For example, ordering 5 linear metres provides approximately 5 m² of material.

A further advantage of closed-cell foam is that it is lightweight, so you can treat large areas of the vehicle without adding much weight.

How to Install Automotive Sound Deadening

Installing sound deadening correctly is just as important as choosing the right material. Good surface preparation, accurate cutting and firm contact with the vehicle panel will help achieve the best result.

Step 1: Remove Interior Trim

Carefully remove the carpet, door trims, boot lining or other interior panels covering the area you plan to treat. Keep all clips, screws and fasteners organised so the interior can be correctly reassembled.

Before applying any material, identify wiring, airbags, drainage holes, seat mounts and moving components that must remain accessible.

Step 2: Clean and Prepare the Surface

Remove all dust, dirt, grease, oil and loose material from the vehicle panel. The surface should be clean and completely dry before installation.

For best adhesion, wipe the metal surface with a suitable residue-free cleaner and allow it to dry fully.

Step 3: Measure and Test-Fit

Measure the area and cut the material into manageable sections. For curved or complex areas, making a paper or cardboard template first can help reduce waste.

Test-fit each piece before final installation and check that it will not interfere with wiring, drainage paths, fasteners or the refitting of interior trim.

Step 4: Cut the Material to Shape

Cut the sound deadener to the required shape using a sharp utility knife or heavy-duty scissors, depending on the product.

For easier installation, use several accurately fitted sections rather than trying to force one large piece over complex curves and contours.

Step 5: Apply and Press Firmly Into Place

Position the material carefully and press it firmly against the panel, working gradually across the surface to avoid trapped air and poor contact.

Use an installation roller to apply even pressure across the material, particularly around curves, edges and recessed areas.

Step 6: Check Clearances and Refit the Interior

Before replacing the carpet or trim, check that all wiring, drainage holes, seat mounts, fasteners and moving components remain clear and accessible.

Refit the interior carefully and make sure no panel is being forced into position by excessive material thickness.

Common Sound Deadening Installation Mistakes

Even high-quality sound deadening material will not perform as intended if it is installed incorrectly. Avoiding the following common mistakes can improve performance and make it easier to refit the vehicle interior.

1. Installing Over a Dirty or Damp Surface

Dust, grease, oil and moisture can prevent the material from making proper contact with the vehicle panel. Always clean and fully dry the surface before installation.

2. Using Material That Is Too Thick for the Available Space

Thicker material can provide greater absorption in suitable areas, but it is not the best choice everywhere. Using 15 mm material behind a tight door trim or other restricted area may prevent the interior panel from fitting correctly.

Choose the thickness according to the available clearance: 6 mm for tighter areas, 10 mm as the best all-round option, and 15 mm where maximum absorption is required and sufficient space is available.

3. Blocking Drainage Holes

Vehicle doors and body panels often contain drainage holes that allow water to escape. Never cover or block these openings, as trapped moisture can contribute to corrosion and other problems.

4. Covering Wiring, Fasteners or Service Points

Avoid permanently covering wiring connectors, bolts, access panels and other components that may need to be serviced later. Plan each piece before installation so important components remain accessible.

5. Interfering With Airbags or Moving Components

Never install material where it could interfere with airbags, seat mechanisms, window regulators, door locks, pedals or other moving components. Always inspect the installation area carefully before applying the material.

6. Assuming More Layers Are Always Better

Adding more material does not automatically produce a better result. Excessive thickness can make interior trim difficult to refit and may add unnecessary bulk.

Use the right product for each location and add thermal insulation only where heat protection is required.

7. Skipping the Installation Roller

Pressing the material by hand alone may leave areas with poor contact. Using an installation roller helps apply firm, even pressure and improves contact with flat panels, curves and recessed areas.

Frequently Asked Questions About Car Sound Deadening

Is car sound deadening worth it?

Yes. Sound deadening can make a noticeable difference by reducing road and tyre noise, softening cabin echo and cutting panel rattles, which improves overall cabin comfort. The greatest improvement usually comes from treating the main noise-transfer areas first, such as the floor, transmission tunnel, doors and wheel arches.

Is thicker sound deadening always better?

No. The best thickness depends on the installation area and available clearance. A 6 mm product is more practical in tight areas, 10 mm provides the best all-round balance for many vehicle applications, and 15 mm is suited to areas where maximum absorption is required and sufficient space is available.

Does sound deadening help with heat?

Yes. Closed-cell foam sound deadening helps reduce heat transfer, and the foil facing on the 6 mm and 10 mm products adds useful radiant-heat reflection. Where heat is a major concern, a dedicated thermal insulation product provides additional protection. For areas such as roofs, floors and transmission tunnels, sound deadening can be combined with 5 mm double-sided aluminium foil insulation where suitable.

How much of the vehicle should I cover?

You do not always need to cover every panel. Start with the areas that transmit the most noise, such as the floor, doors and wheel arches. Additional areas can then be treated depending on the vehicle, your budget and the level of improvement required.

Can I install sound deadening myself?

Yes. Many sound deadening installations can be completed as a DIY project using basic tools. The most important steps are cleaning the surface properly, measuring and test-fitting each piece, cutting accurately and pressing the material firmly into place with an installation roller.

Can sound deadening improve car audio?

It can help. Treating the door cavity and other areas reduces rattles and airborne noise around the speakers, which makes the audio sound cleaner and less cluttered. Note that reducing panel resonance for stronger, tighter bass is a separate job that requires a dense mass-type damping material applied to the panel — foam reduces rattles and airborne noise rather than panel resonance.

Does sound deadening add much weight?

No — and this is one of the advantages of closed-cell foam. It is lightweight compared with dense damping mats, so you can treat large areas of the vehicle for comfort and noise reduction without adding significant weight.

Can I use different thicknesses in the same vehicle?

Yes. In many cases, using different thicknesses in different areas is the most practical approach. For example, 6 mm material can be used in tight spaces, 10 mm across general floor and cargo areas, and 15 mm around wheel arches or other high-noise areas where sufficient clearance is available.

Choosing the Right Sound Deadening System for Your Vehicle

There is no single sound deadening thickness that is best for every part of a vehicle. The most effective system uses the right material for each location, based on the main source of noise, available clearance and whether additional thermal protection is required.

For most installations:

• Choose 6 mm sound deadener for doors, roofs, tailgates and other areas where space behind the interior trim is limited.
• Choose 10 mm sound deadener as the best all-round option for floors, transmission tunnels, firewalls, boot floors and general vehicle insulation.
• Choose 15 mm dimple sound deadener for wheel arches, large cargo areas, vans, 4WDs and locations where maximum absorption is required and sufficient clearance is available.
• Add 5 mm double-sided aluminium foil insulation where additional thermal protection is required, particularly around floors, transmission tunnels, roofs, vans and caravans.

A Practical Approach for Most Vehicles

If you are not sure where to begin, start with the areas responsible for the most noticeable noise. Treat the floor and transmission tunnel with 10 mm sound deadener, use 6 mm material in tighter areas such as doors, and consider 15 mm dimple sound deadener around wheel arches or large cargo areas.

Where heat is also a concern, 5 mm double-sided aluminium foil insulation can be added in suitable areas as part of a layered system.

You do not need to complete the entire vehicle at once. Starting with the highest-priority areas allows you to assess the improvement before adding further treatment.
